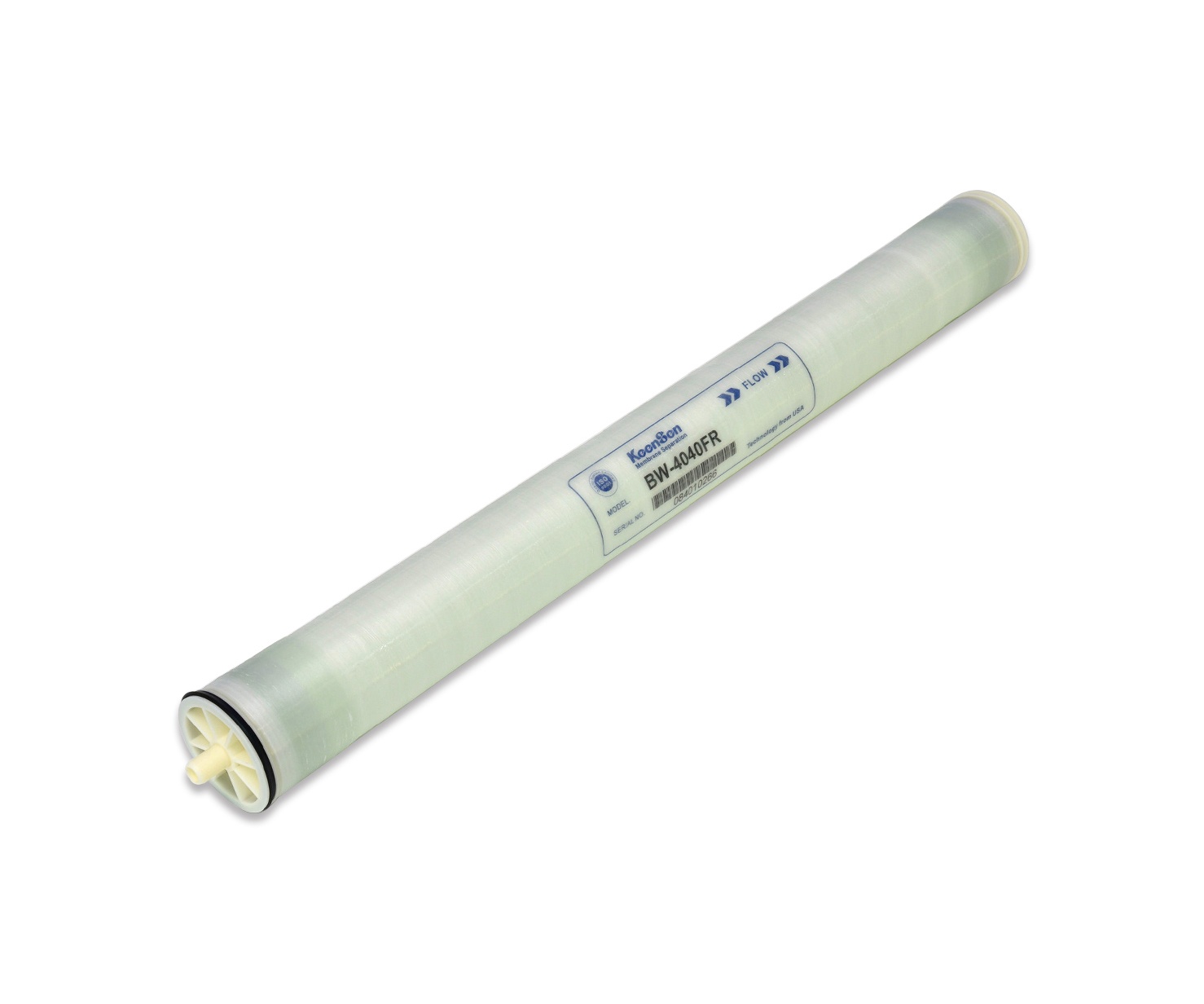

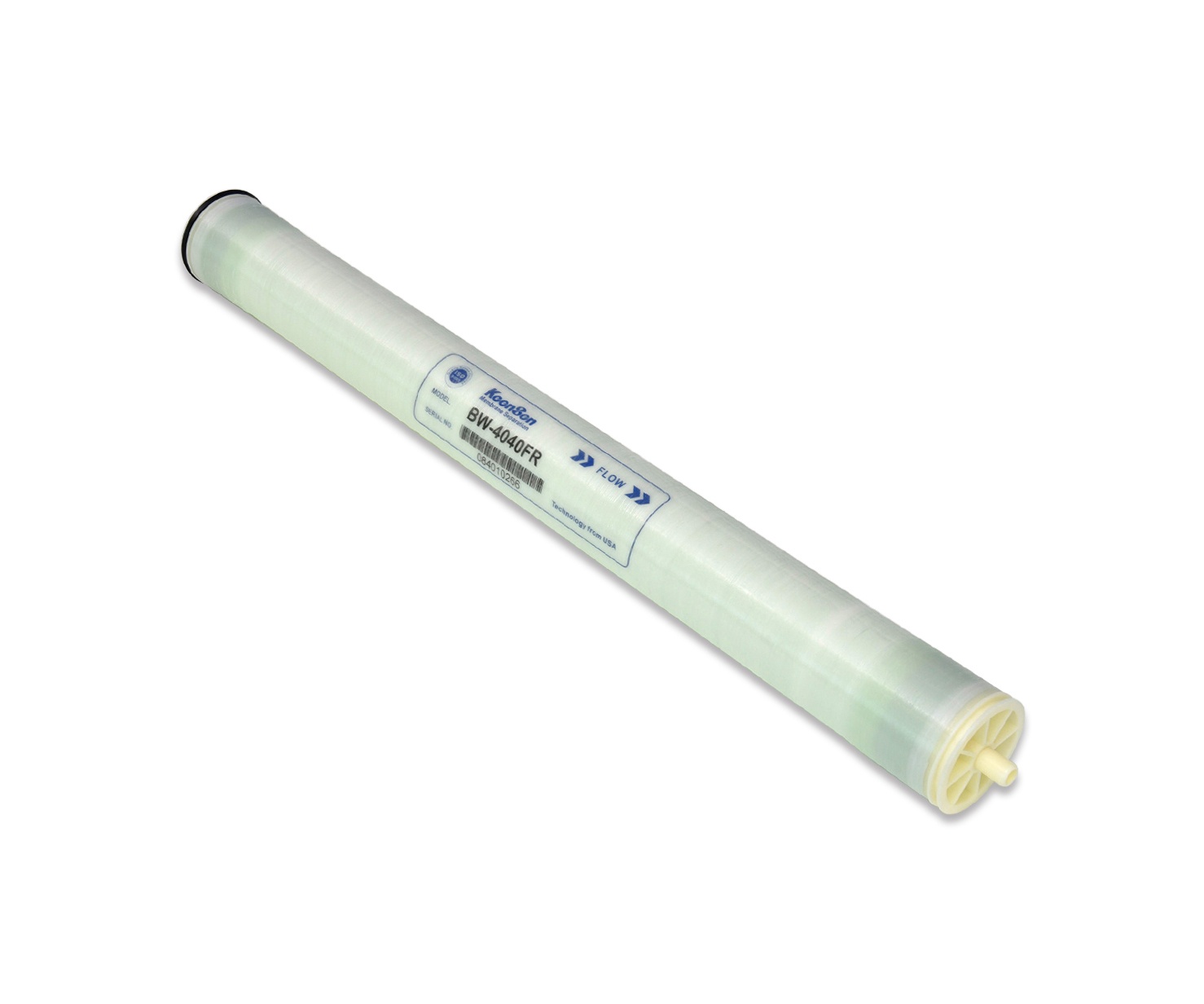

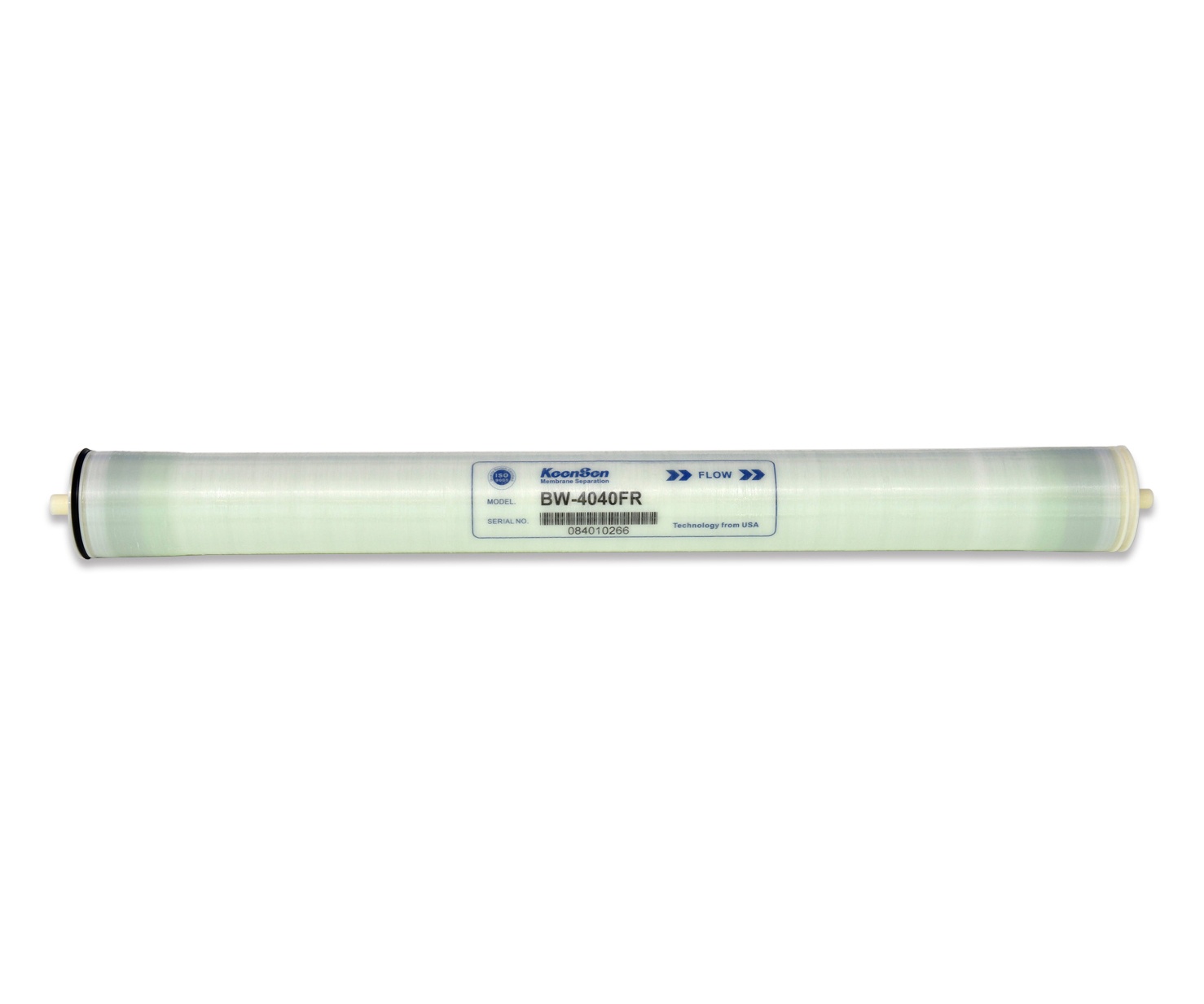

Industrial Reverse Osmosis Membrane Element 2400GPD
- Product No.：BW-4040FR
Usage
It is applicable to the desalination of surface water, groundwater and water treatment with salt concentration between 2000 and 8000ppm. It can be widely used in the medicine, chemical industry, beverage, electricity and other various industries etc..
Specifications & Parameters
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| BW-4040FR | 78(7.3) | 34 | 2000(7.6) | 99.60 | 99.50 |
Standard Test Condition
| Concentration of Solution (NaCl) | Temperature（℃） | pH Value | Operating Pressure psi(MPa) | Recovery Rate（%） |
| 2000mg/L | 25 | 7.5-8 | 225(1.55) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
