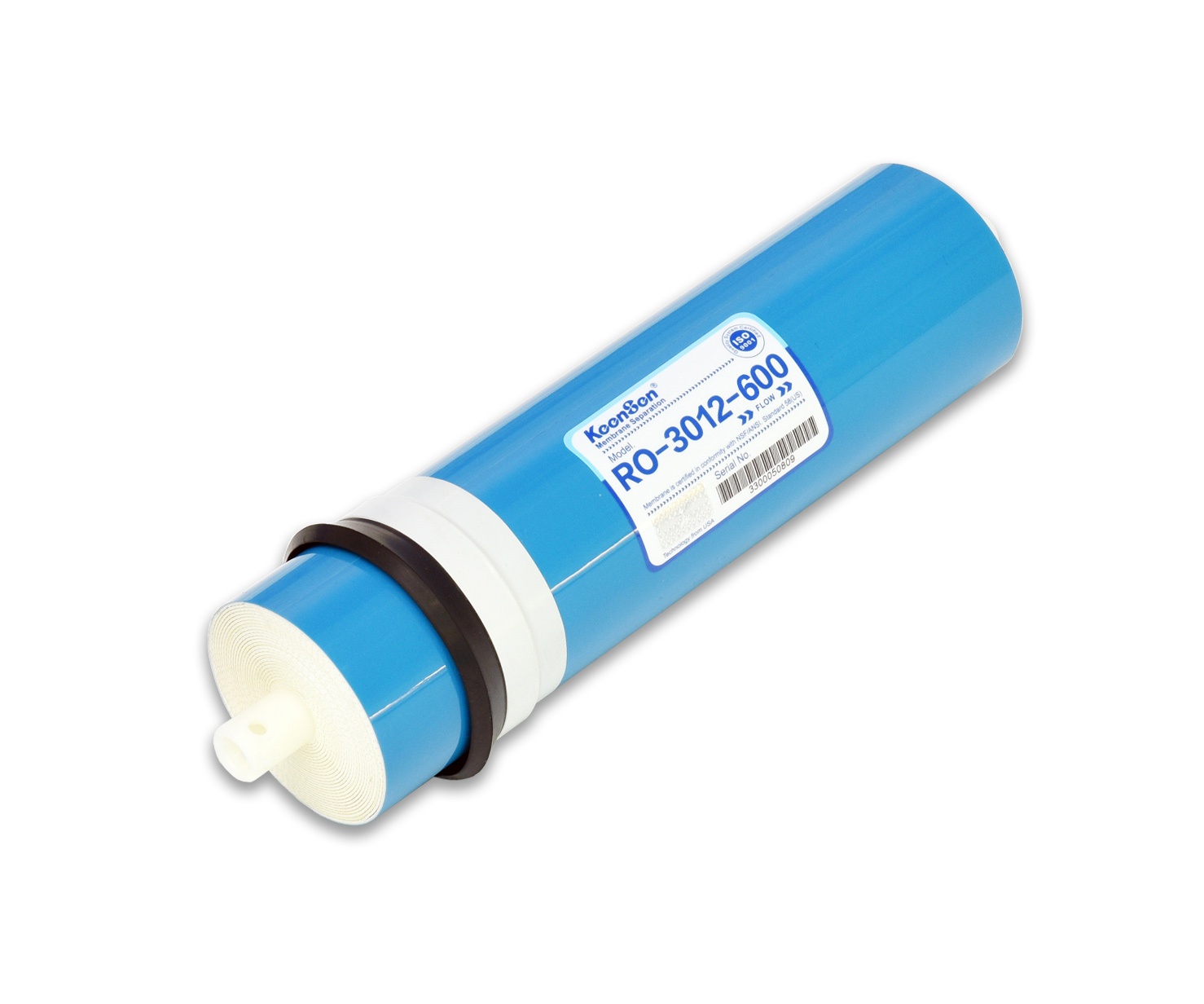

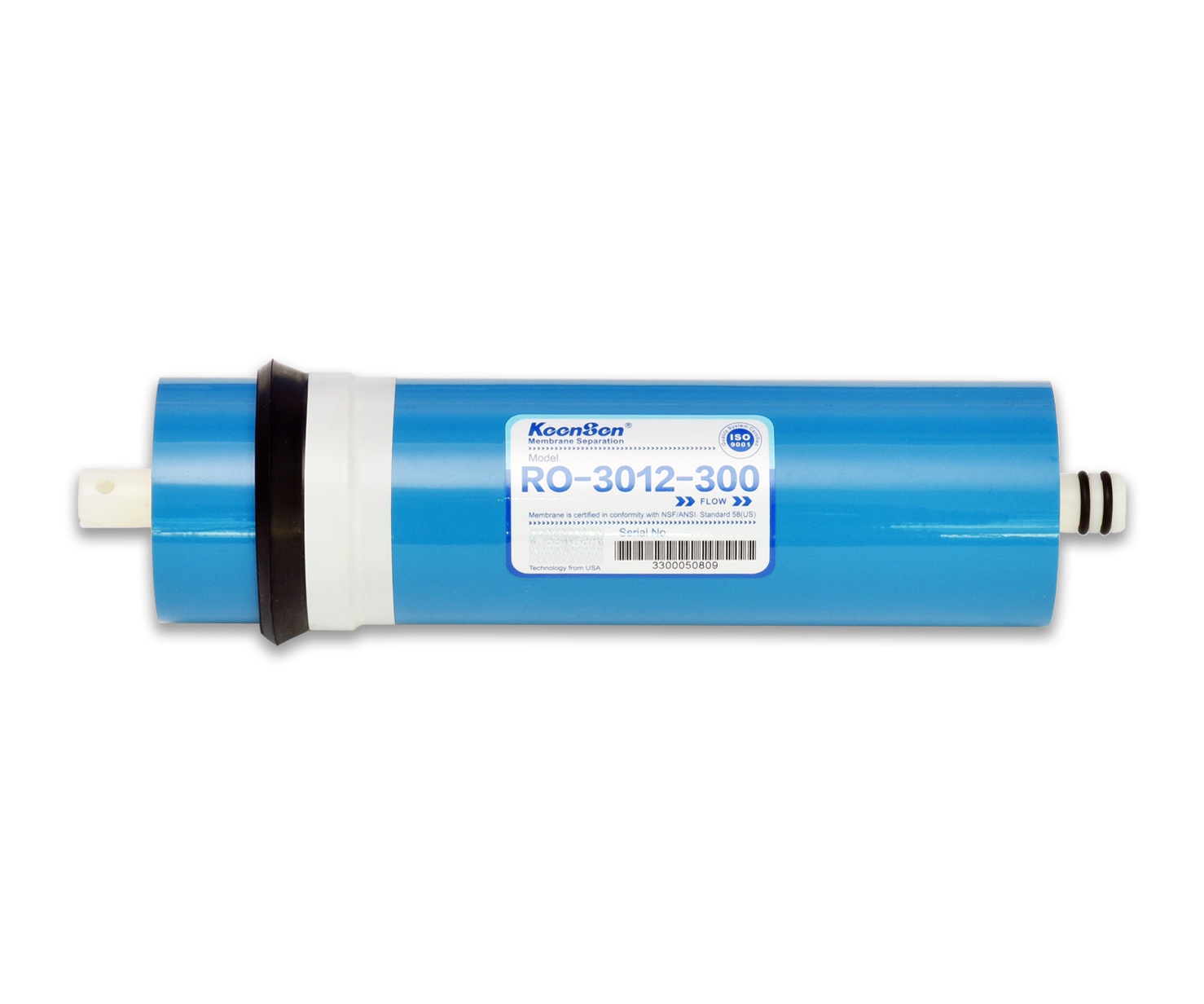

Household RO Membrane Elements RO-3012
- Product No.：RO-3012-300/400/600
Usage
It is widely applicable to household water purification, direct drinking in building or office and other small water purification equipment etc..
Specifications & Parameters
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate of Test Method A (%) |
Stable Rejection Rate of Test Method B (%) |
| RO-3012-400 | 14.7(1.37) | 400(1.51) | 95.00 | 98.00 |
Standard Test Condition
| Test Methods | Concentration of Solution | Temperature (℃) |
pH Value | Operating Pressure psi(MPa) |
Recovery Rate (%) |
| A | 500mg/L (NaHCO3、CaCl2、NaCl) |
25 | 7.5-8 | 100(0.69) | 50 |
| B | 250mg/L NaCl | 25 | 7.5-8 | 100(0.69) | 20-30 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 300 psi(2.07MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 2-12 |
| Max. Pressure Drop of Single Membrane Element | 10psi(0.07Mpa) |
