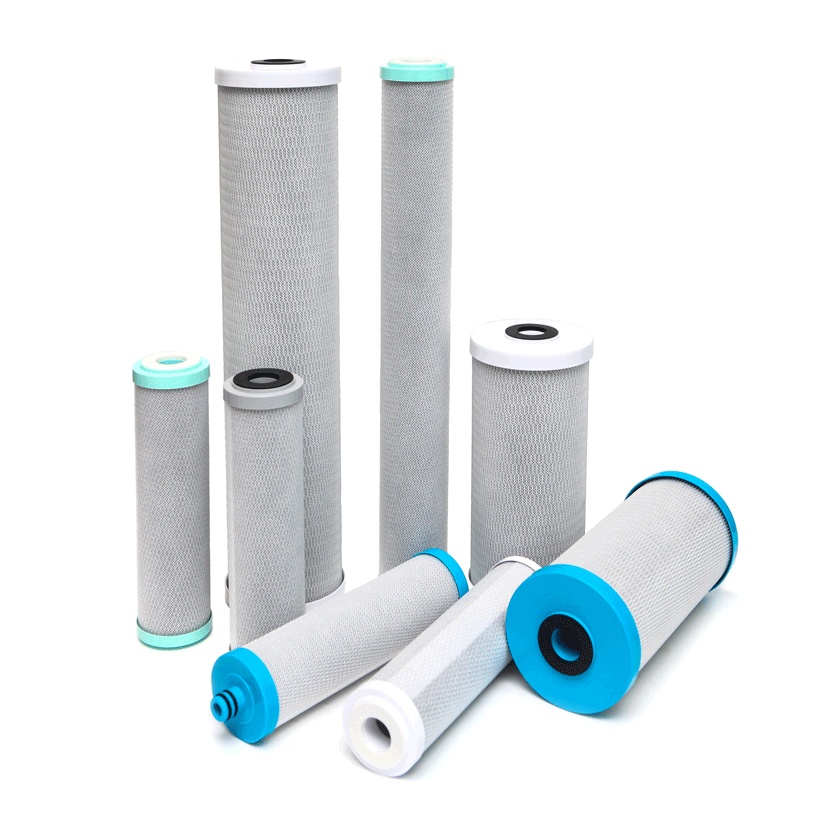

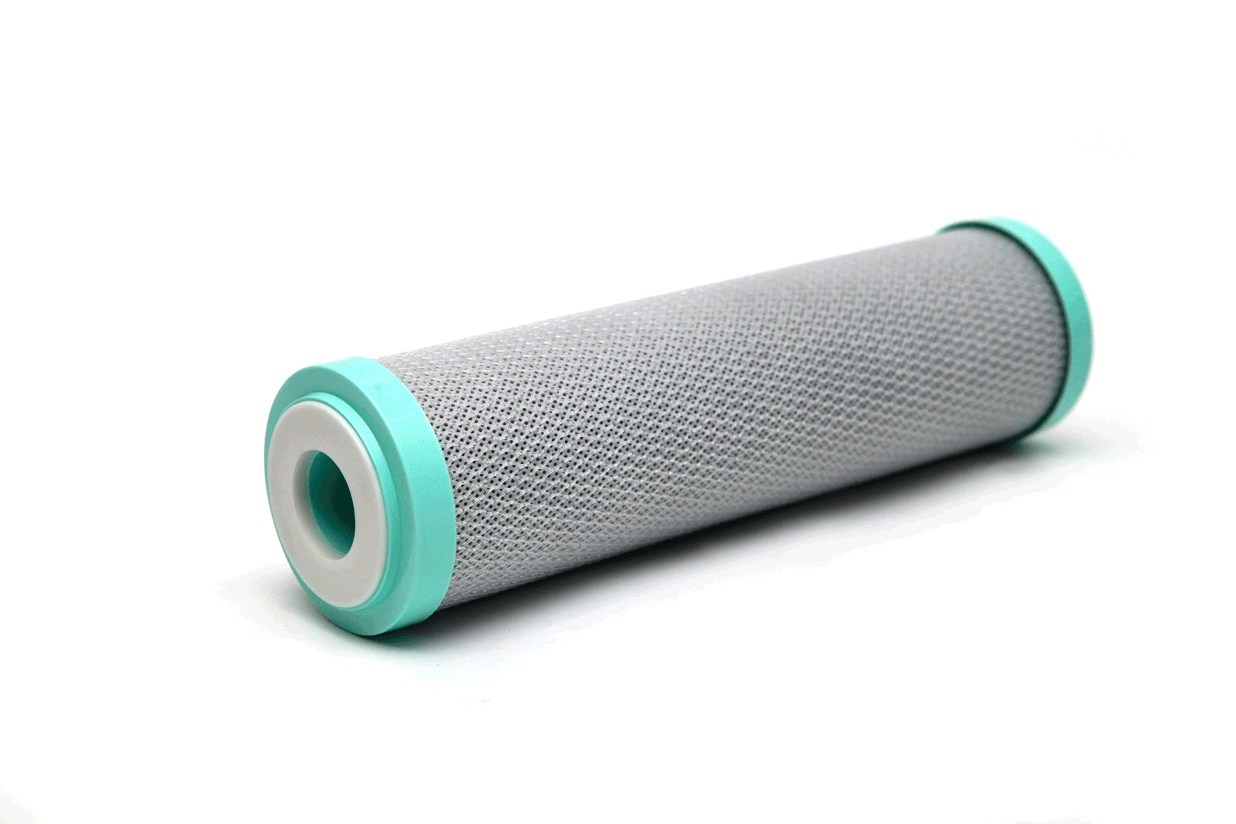

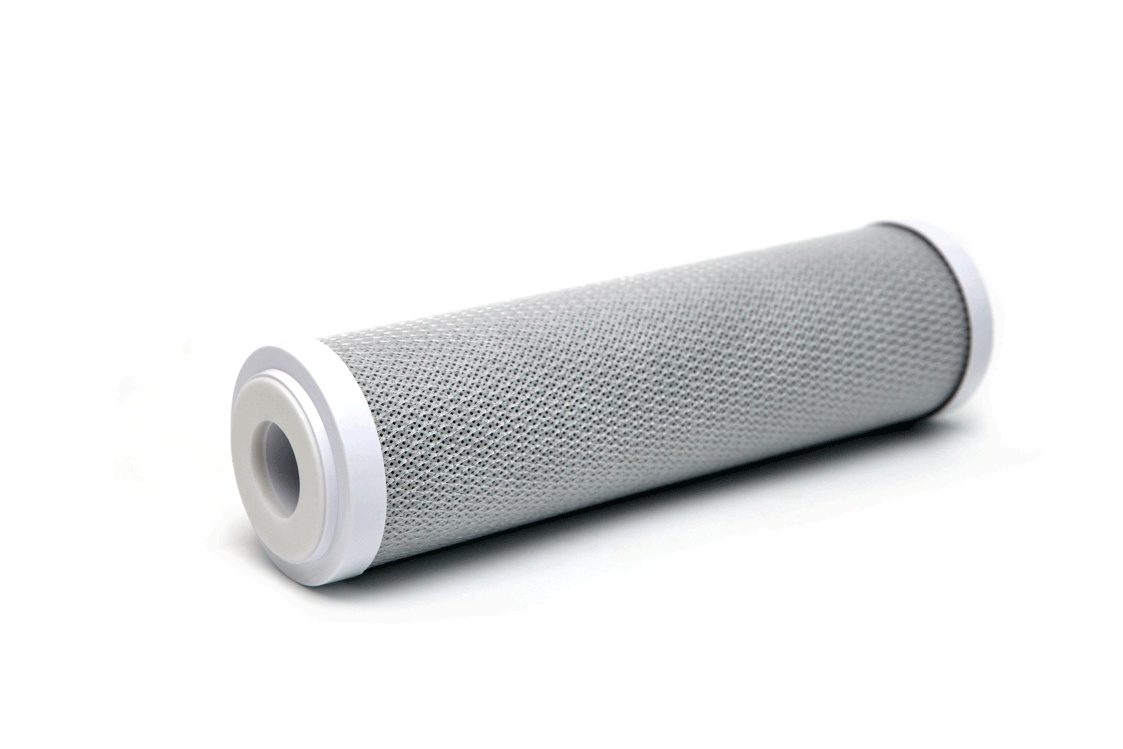

NSF42 Sintered Coconut Shell Activated Carbon Block Water Filter Element OEM ODM Water Filter Cartridge

NSF42 Sintered Coconut Shell Activated Carbon Block Water Filter Element OEM ODM Water Filter Cartridge

Product No.：Carbon Block Water Filter Cartridge
Online Inquiry

CTO Specifications
Diamensions: 2.5*5", 10", 20′′		O. D: 63mm, I. D: 45/38mm, Length: 120-495mm
Chlorine removal rating: 75% in 10000L		Micron rating: 1-10micron
Maximum operating pressure: 0.7Mpa		Maximum differential pressure: 0.4Mpa
Maximum operating temperature: 60 Centigrade		Material: High iodine value Coconut shell activated carbon
Wrap: PP		Netting: PE
End Caps: Polypropylene	Gasket: TPE		Glue: EVA

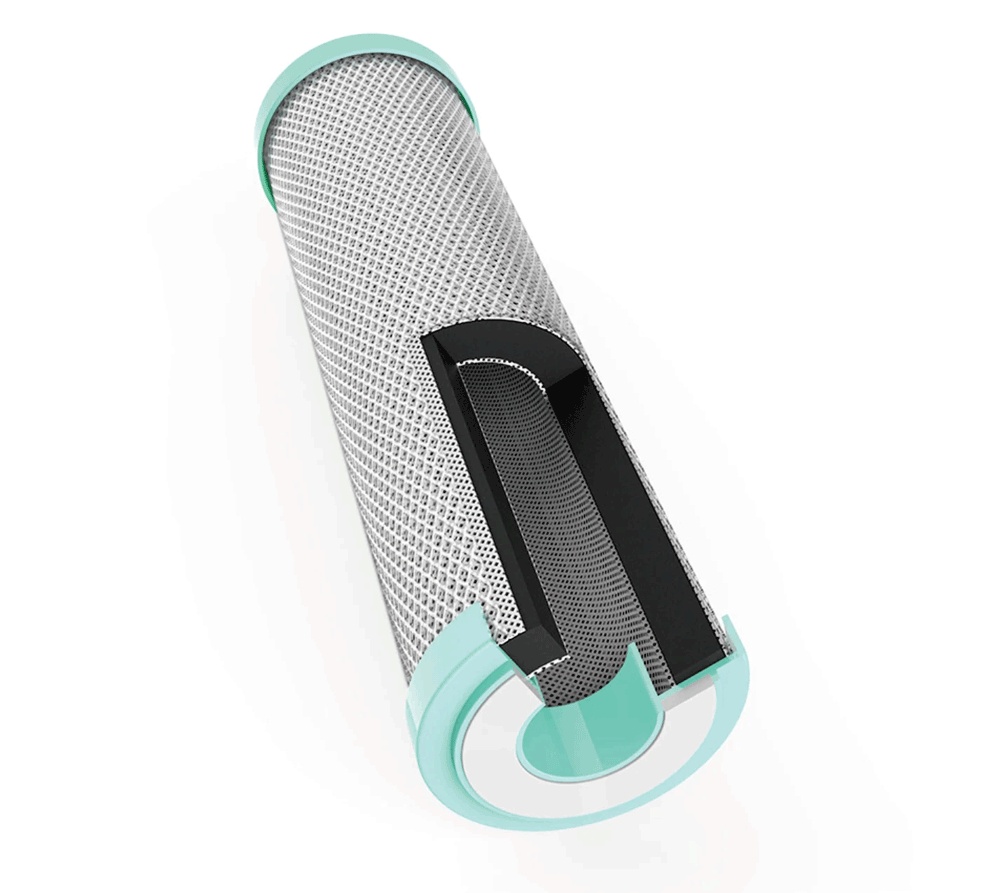

Carbon Block is manufactured by strictly sintered and extruded controlled engineering processes which is techniques and material of the highest quality guarantee excellent durability, minimal pressure loss and high filtration rate.

1. Custom shaped, dimensions and filter media.
2. HCB is certified by NSF for material safety against NSF42.
3. PAC material certified by NSF61 and NSF42.
4. Binder material certified by NSF51 and FDA.

5. The wrapped matieral is melt-blown micro fibre PP materials.

6. The assembly process are fully automated.

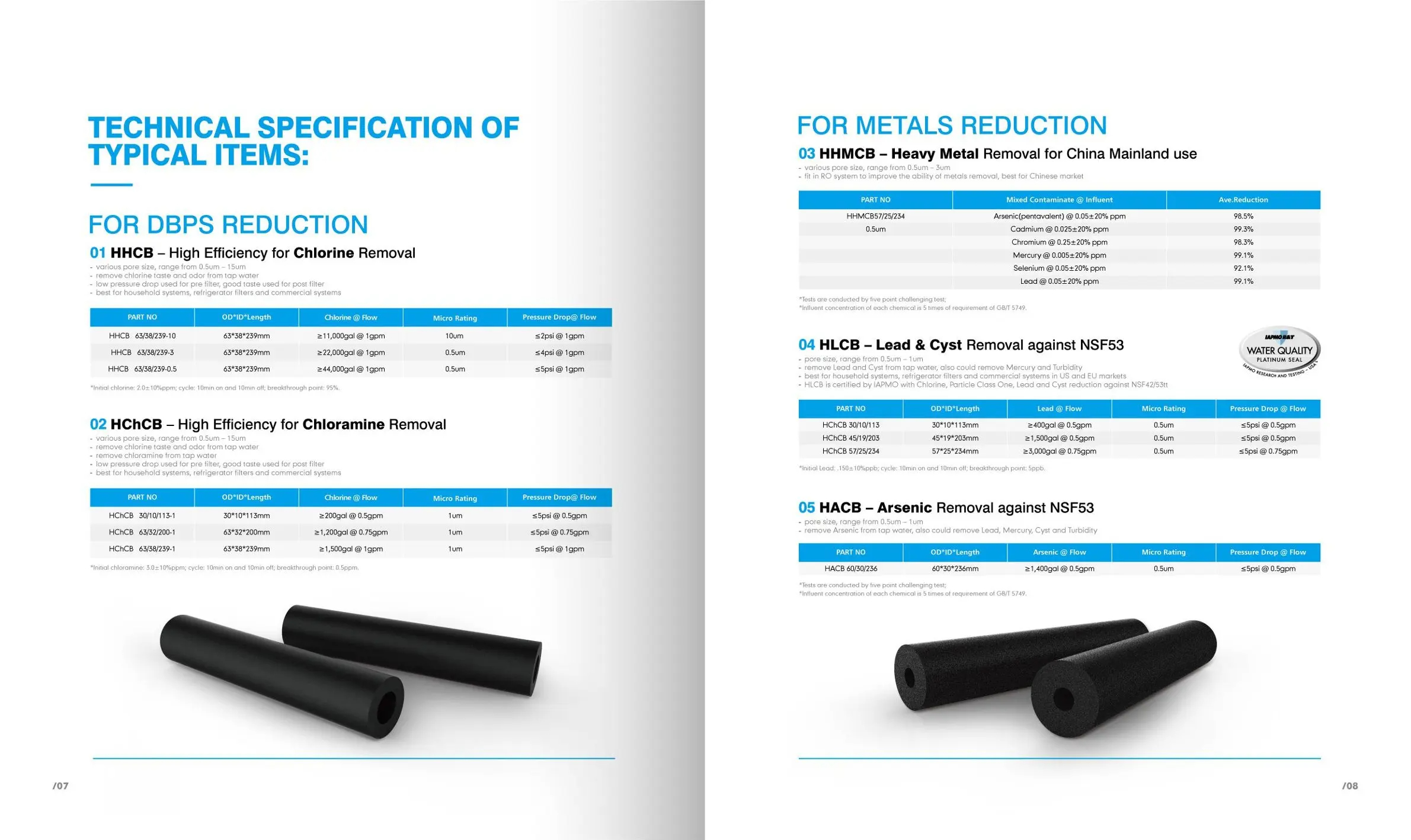

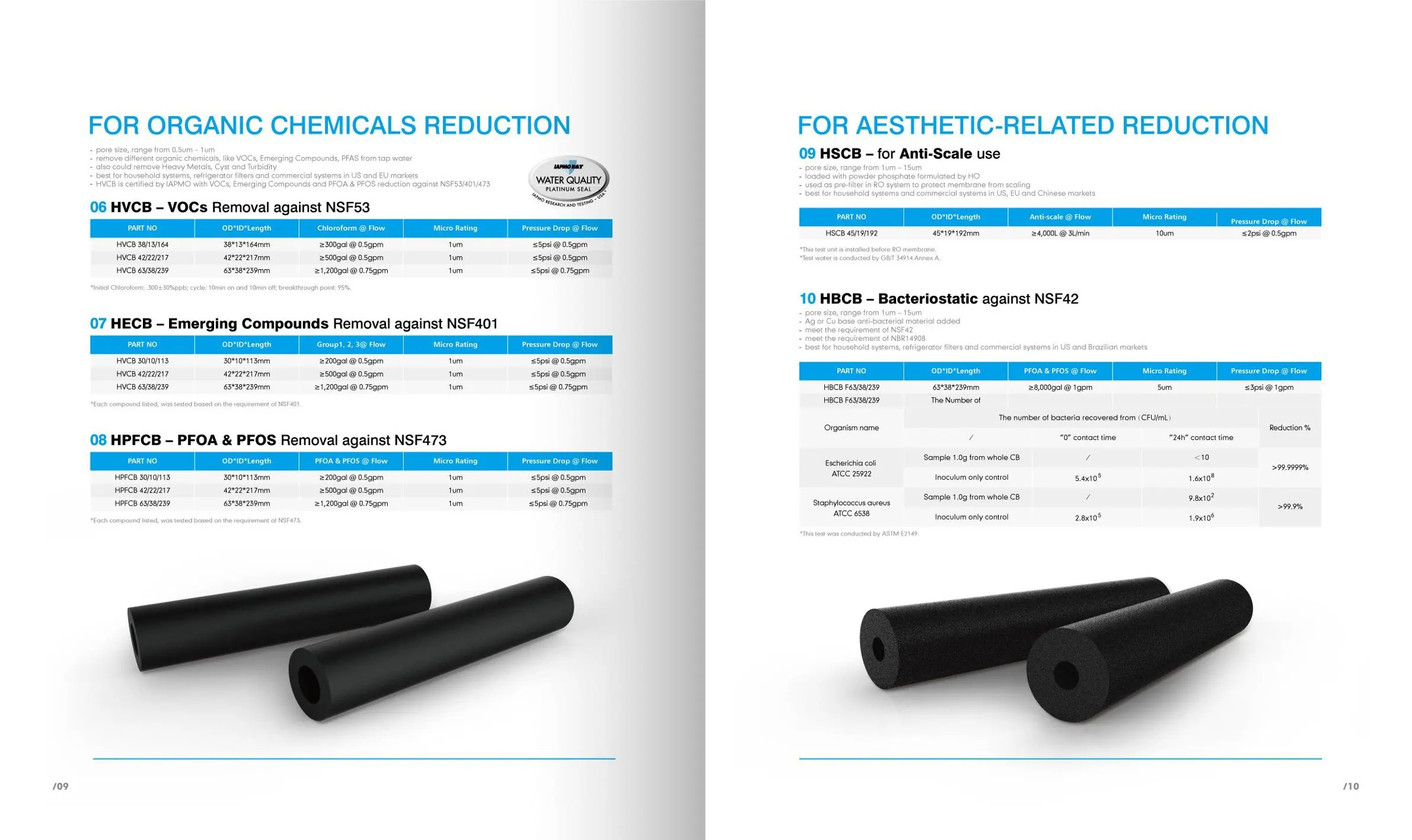

Items
HHCB - chlorine removal cartridge		HECB - emerging compounds removal cartridge
HChCB - chloramine removal cartridge		HPFCB - PFOA & PFOS removal cartridge
HHMCB - heavy metals removal for Chinese market		HSCB - antic-scale cartridge
HLCB - Lead & Cyst removal cartridge		HBCB - bacteriostatic cartridge
HACB - Arsenic & Cyst removal cartridge		Carbon Plate/Block- for gravity pitcher or squeeze bottle
HVCB - VOCs removal cartridge		HMCB - mineralization cartridge
