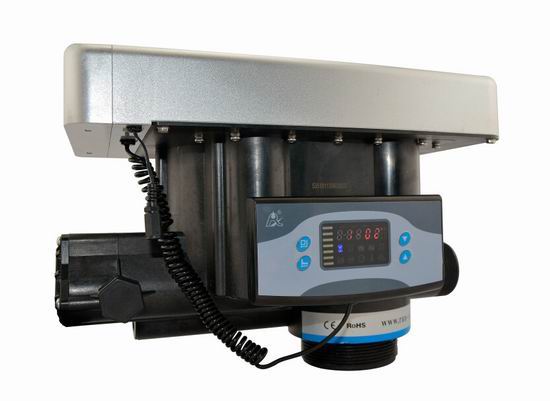

Filter Valve

Product No.：53518 (F77B)
Online Inquiry

Technical Parameters：
●Water Pressure------------------------------------------------0.15—0.6MPa
●Water Temperature-------------------------------------------5℃-50℃
●Transformer Output-------------------------------------------DC24V、1.5A
●Water Turbidity------------------------------------------------＜20FTU
●Inlet/Outlet-------------------------------------------------------2″M
●Drain--------------------------------------------------------------2″M
●Base---------------------------------------------------------------4″-8UN
●Riser Pipe--------------------------------------------------------1.5 ″D-GB
●Max Flow Rate---------------------------------------------------18 m3/h
●Suitable Tank Size (in)-----------------------------------------24″～30″

Product Characteristics：
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need

Range of Application：
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
