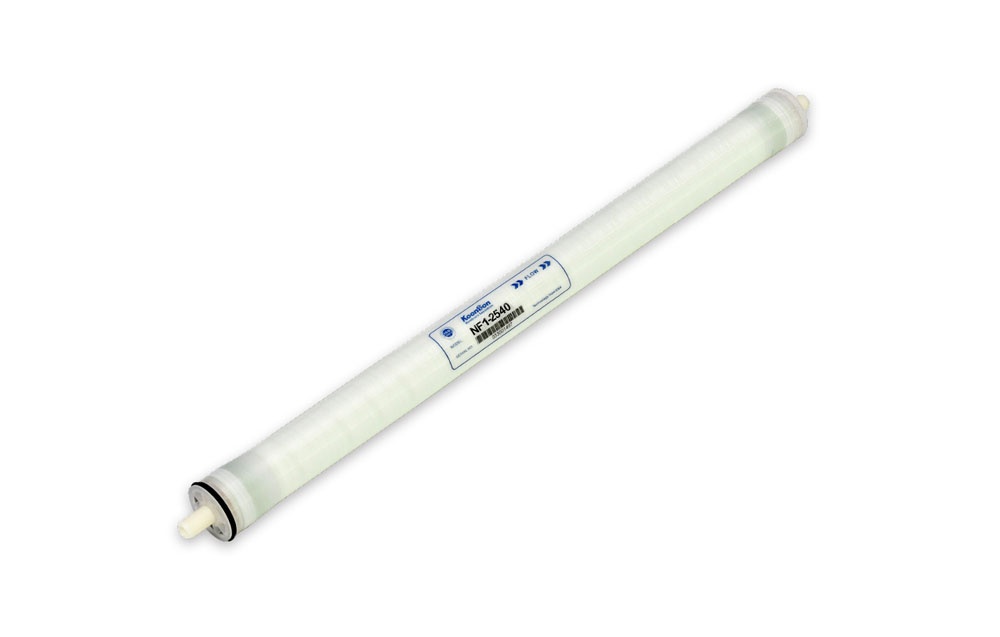

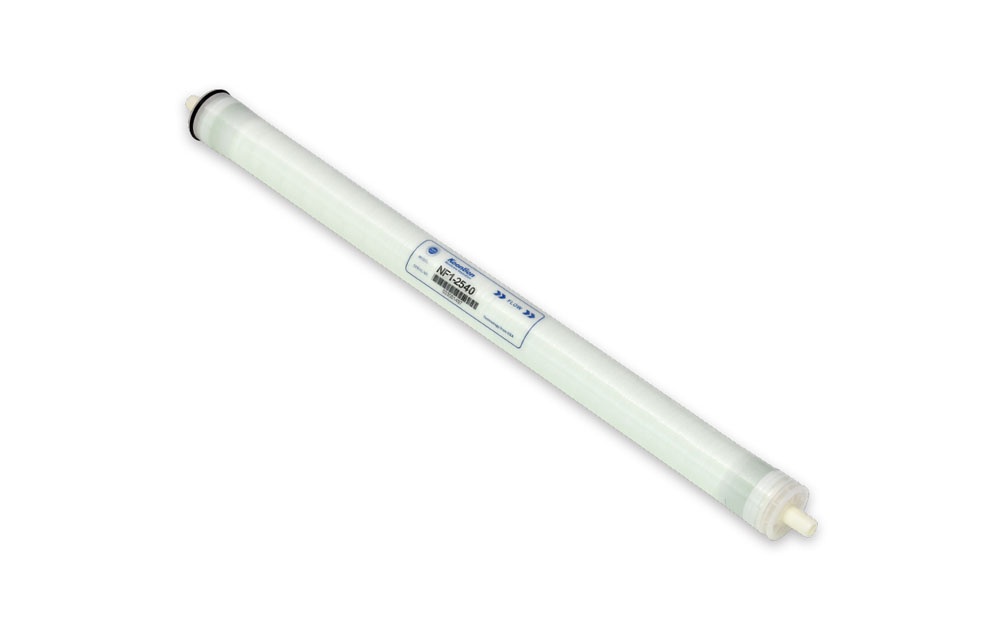

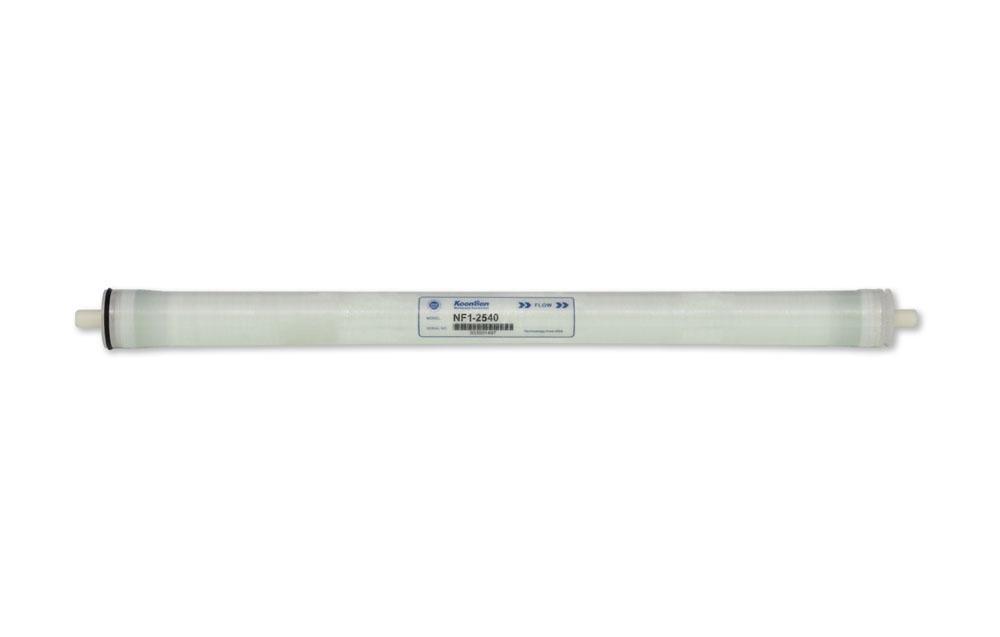

Commercial Series NF Membrane Element-NF1-2540
- Product No.：NF1-2540
Usage
It is applicable to the desalination of raw water with salt concentration 500ppm,and it was widely used for small household water purifier,mineral water machine and energy machine etc..
Specifications & Parameters
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF1-2540 | 27(2.5) | 750(2.8) | 50-70 | NaCl |
| 600(2.3) | >98 | MgSO4 |
Standard Test Condition
| Concentration of Solution | Temperature（℃） | pH Value | Operating Pressure psi(MPa) | Recovery Rate（%） |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 1.4m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
