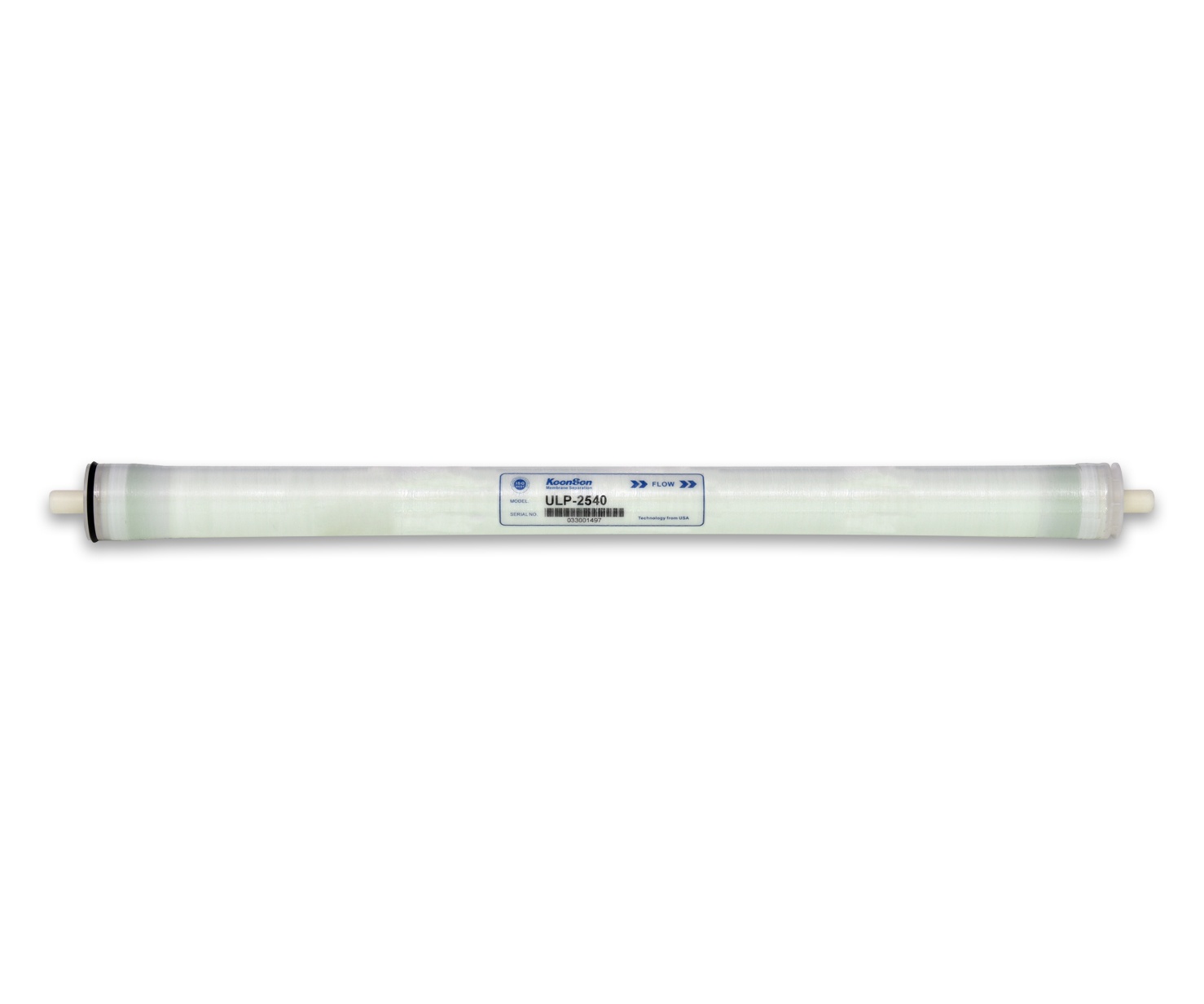

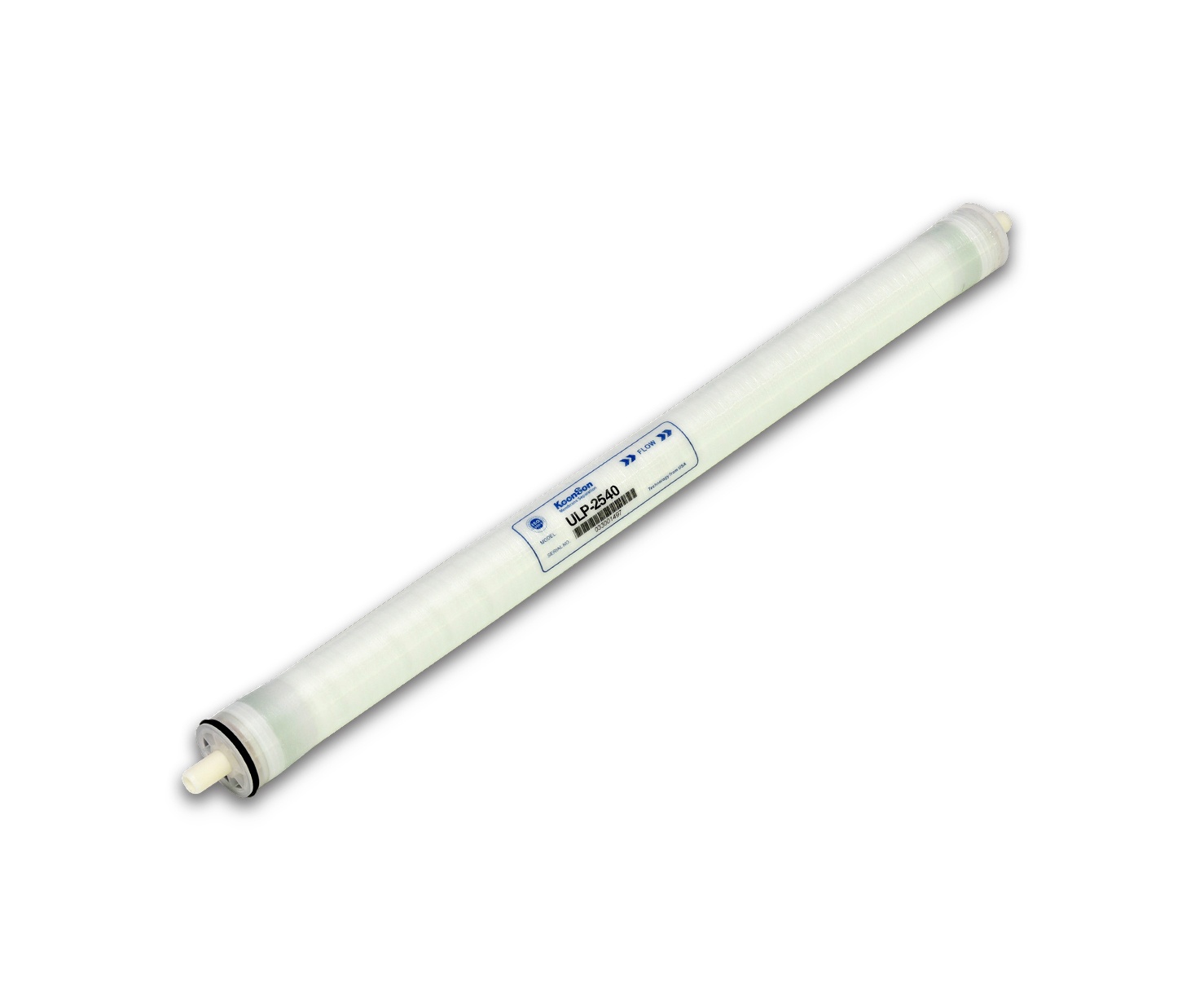

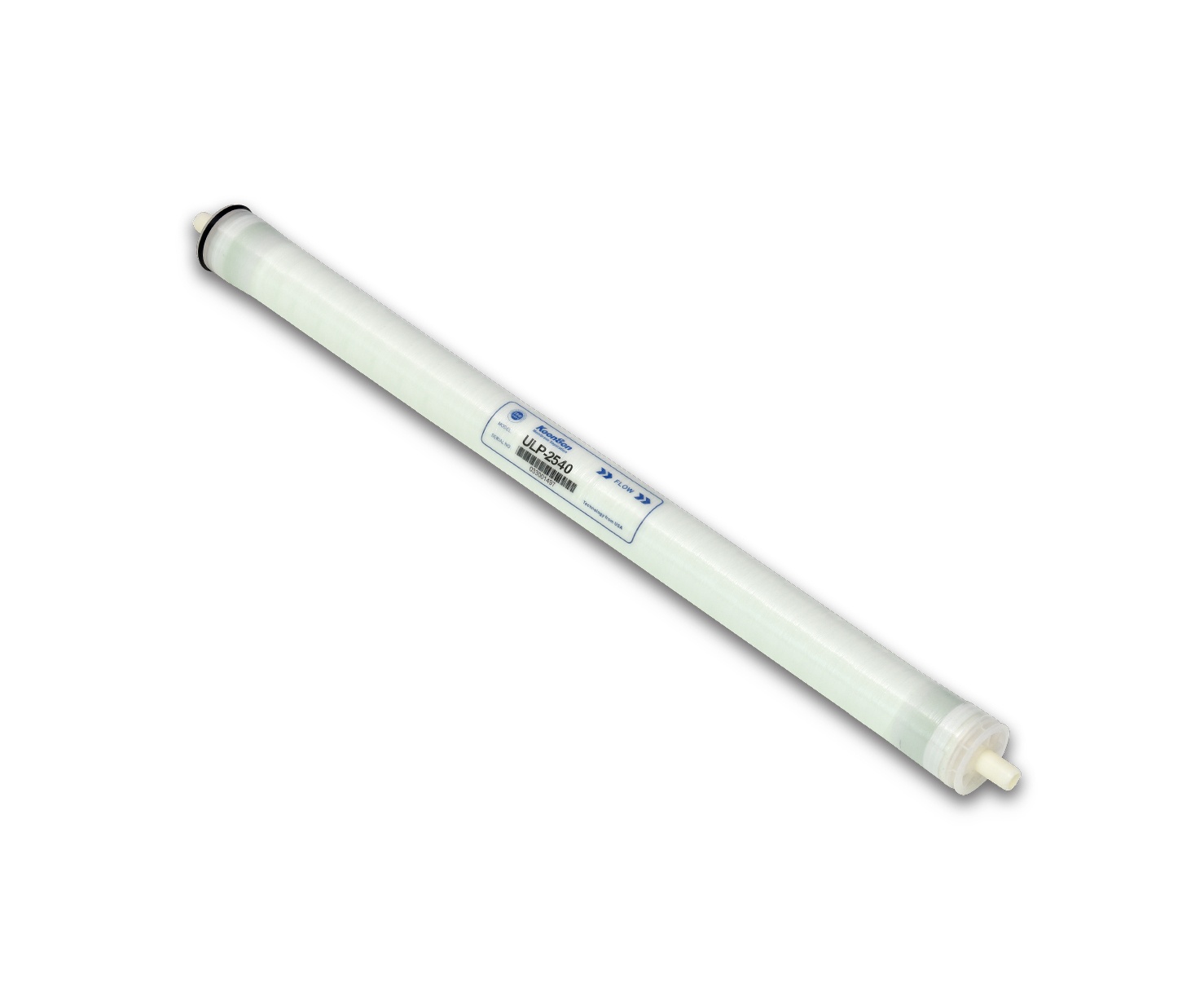

Ultra Low Pressure and Extreme Low Pressure RO Membrane Element-ULP-2540
- Product No.：ULP-2540
Usage
It is widely used for automatic water dispenser in residential area and school, direct drinking equipment in office, pure water machine in medical laboratory,small-sized desalination device etc.
Specifications & Parameters
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| ULP-2540 | 27(2.5) | 28 | 750(2.8) | 99.20 | 99.00 |
Standard Test Condition
| Concentration of Solution (NaCl) | Temperature（℃） | pH Value | Operating Pressure psi(MPa) | Recovery Rate（%） |
| 1500mg/L | 25 | 7.5-8 | 150(1.03) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 1.4m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
