Products >> Control Valves >>

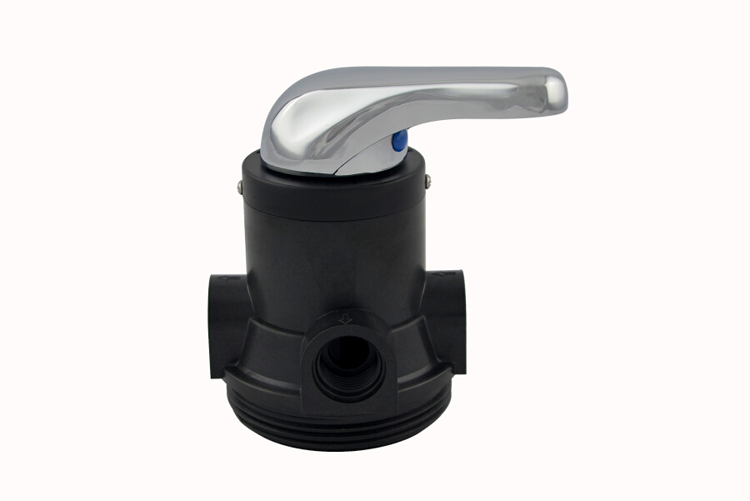

Manual Filter Valve
- Product No.:51201A(F52)
Technical Parameters:
●Water Pressure----------------------------------------------0.15—0.6MPa
●Water Temperature-----------------------------------------5℃-45℃
●Water Turbidity-----------------------------------------------<20FTU
●Inlet/Outlet-----------------------------------------------------1/2″F
●Drain------------------------------------------------------------1/2″F
●Base-------------------------------------------------------------M82×3
●Riser Pipe------------------------------------------------------Φ16.5 mm
●Max Flow Rate-------------------------------------------------1 m3/h
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
■It can be changed to be side-mounted valve with side-mounted connector.
■It can operate under pressure, without leakage.
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
●Water Pressure----------------------------------------------0.15—0.6MPa
●Water Temperature-----------------------------------------5℃-45℃
●Water Turbidity-----------------------------------------------<20FTU
●Inlet/Outlet-----------------------------------------------------1/2″F
●Drain------------------------------------------------------------1/2″F
●Base-------------------------------------------------------------M82×3
●Riser Pipe------------------------------------------------------Φ16.5 mm
●Max Flow Rate-------------------------------------------------1 m3/h
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
■It can be changed to be side-mounted valve with side-mounted connector.
■It can operate under pressure, without leakage.
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
